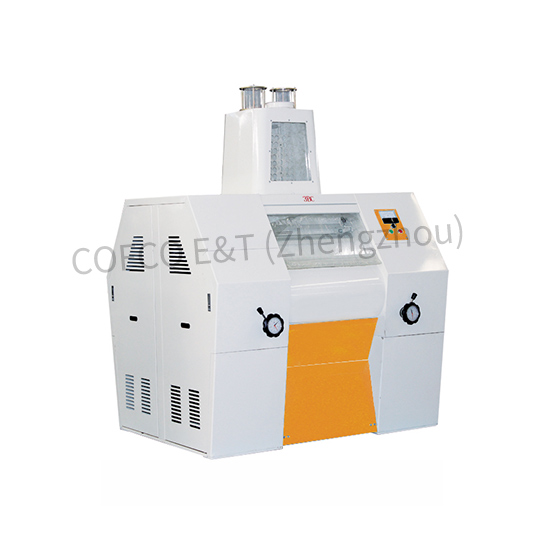

MSQ/MSJ-Pneumatic/Mechanical Roller Mill

It is used for grinding wheat into flour.

Specification

Model	MSQ(J)50x25x2	MSQ(J)60x25x2	MSQ(J)80x25x2
Roller(mm)	Φ250x500	Φ250x600	Φ250x800
Range of Applicable Roller Diameter(mm)	Φ220-250
Fast Roller Dating Speed(m/s)	450-600
Fast-slow Roller Dating Speed Ratio	1.14:1 1.25:1 1.5:1 2:1 2.5:1
Motor Power(kW)	5.5-15	4-11	7.5-22
Weight(kg)	1650	1980	3000
Dimension(mm)	1360x1560x1822	1460x1560x1822	1660x1560x1822

Product Features

Built-in motor with two feeding mode: pneumatic servo feeding and manual mechanical control feeding;

Independent roller distance fine-tuning mechanism to ensure stable roller distance and grinding performance;

Independent cylinder engaging/disengaging mechanism;

Toothed belt transmission mechanism to ensure stable speed ratio.
